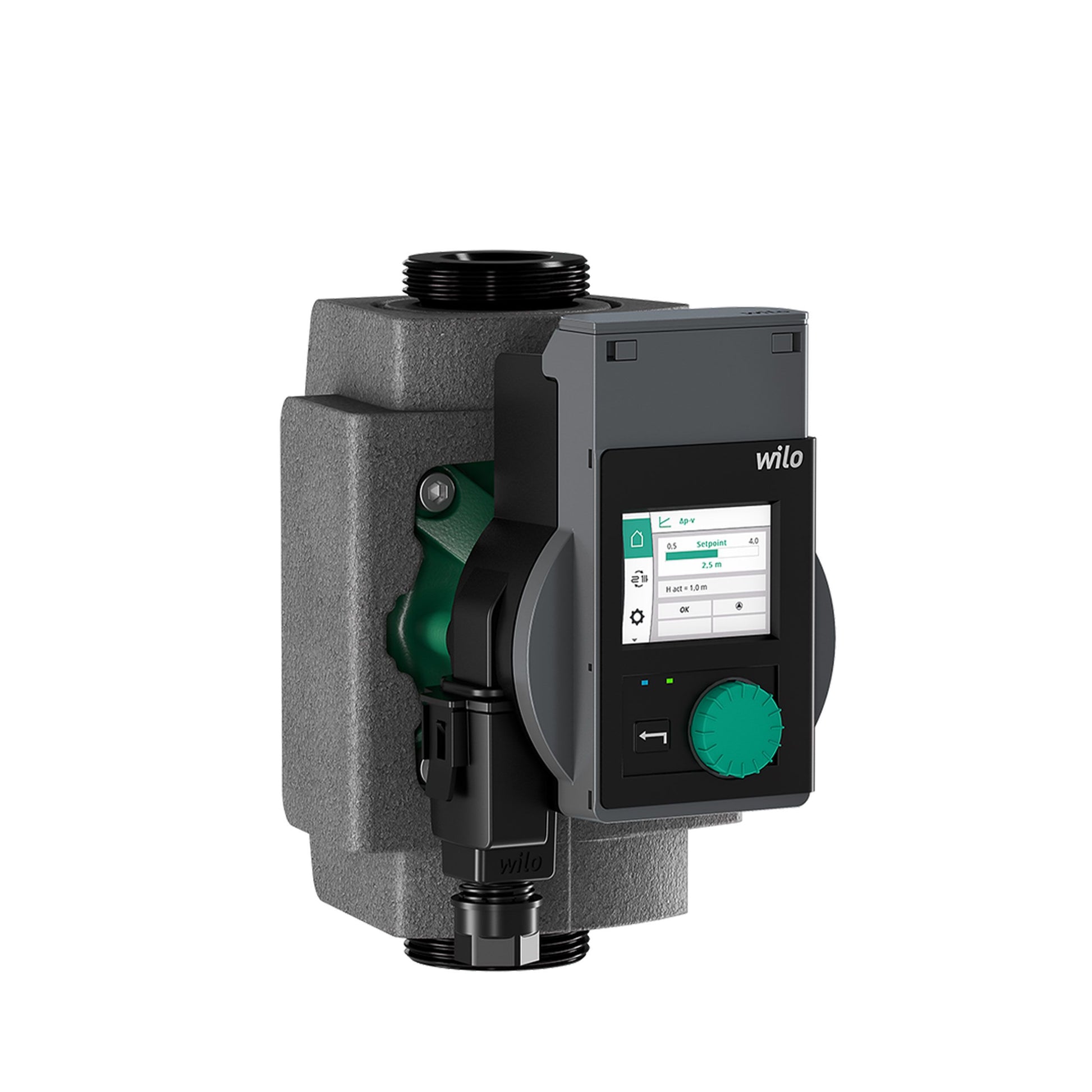

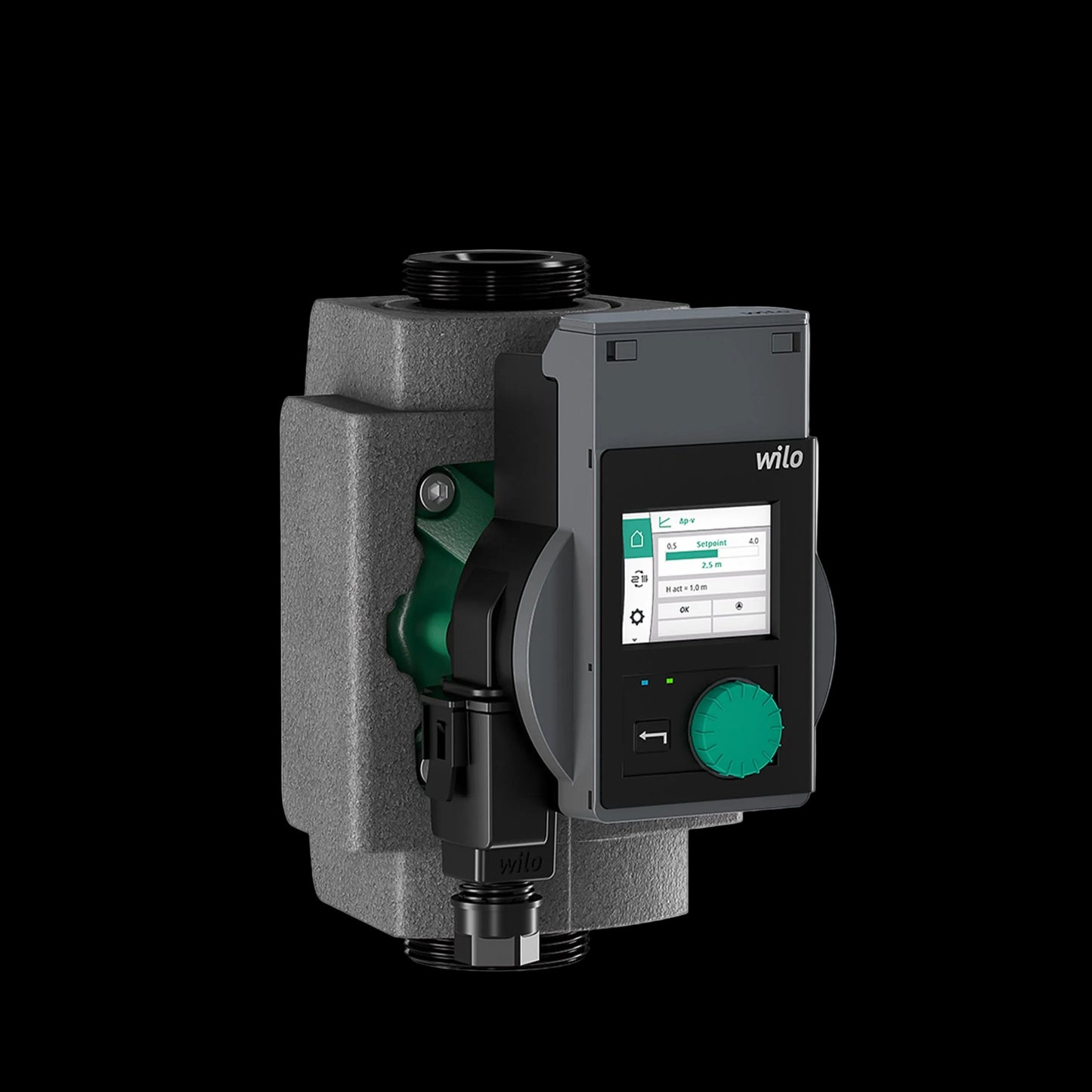

Wilo Stratos PICO Circulating Pump
Wilo Stratos PICO Circulating Pump
Please contact us to place an order
Couldn't load pickup availability
Premium Efficiency, Self-Learning Performance & Smart Balancing
The Wilo Stratos PICO Glandless Circulating Pump represents the absolute pinnacle of premium, high-efficiency domestic circulation technology. Engineered for hot water heating systems, air conditioning, and industrial cooling circuits, this variable-speed pump combines cutting-edge energy intelligence with unparalleled ease of operation for single and two-family homes.
Driven by an advanced synchronous motor with EC technology, the Stratos PICO sets the benchmark for ultra-low power consumption. Featuring the revolutionary Dynamic Adapt plus self-learning function, the pump automatically adapts its performance to the changing heating demands of your home without requiring manual adjustment, guaranteeing maximum comfort with minimal energy waste.
Key Features & Benefits
- Dynamic Adapt Plus: Continuous, automated adaptation to system demand ensures the lowest possible energy use without compromising heat comfort.
- Full-Colour Screen with Green Button: Intuitive user interface featuring a crisp display for real-time tracking of current power (W), flow rate (m³/h), cumulative power consumption (kWh), and diagnostic data.
- Smart Hydraulic Balancing: Fully compatible with the Wilo-Smart Connect app to perform quick, precise hydraulic balancing of your radiators or underfloor loops.
- Automatic Bleeding Function: Built-in venting routine automatically detects and expels trapped air from the rotor chamber for whisper-quiet, smooth operation.
- Supreme Safety & Diagnostics: Features automatic deblocking protection, manual restart functionality, and dry-running detection to preserve the pump's service life.
Technical Specifications
| Specification | Details |
|---|---|
| Motor Technology | Synchronous EC Motor (High-Efficiency, Blocking-current proof) |
| Mains Connection | 1~230 V, 50/60 Hz |
| Energy Efficiency Index (EEI) | ? 0.18 or ? 0.20 (Depending on exact model variant) |
| Fluid Temperature Range | -10 °C to +110 °C |
| Max Operating Pressure | 10 bar (PN 10) |
| Control Modes | Dynamic Adapt plus, Constant ?p, Variable ?p, Constant Speed |
| Pipe Connection Size | G 1½" or G 2" Threaded Connection (Model variant dependent) |
| Materials | Cast Iron (Housing with Cataphoretic Coating), Plastic (Impeller), Stainless Steel (Shaft) |
What is Included in the Box?
- 1 x Wilo Stratos PICO Premium Circulating Pump
- 1 x Custom-Molded Thermal Insulation Shell
- 1 x Quick-Connect Tool-Free Wilo-Connector Plug
- 2 x Premium-Grade Sealing Gaskets
- 1 x Installation & Operating Instructions Manual
