Wilo Yonos PICO Circulating Pump
Wilo Yonos PICO Circulating Pump
Please contact us to place an order
Couldn't load pickup availability
Maximum Efficiency & Unmatched Reliability for Domestic Heating Systems

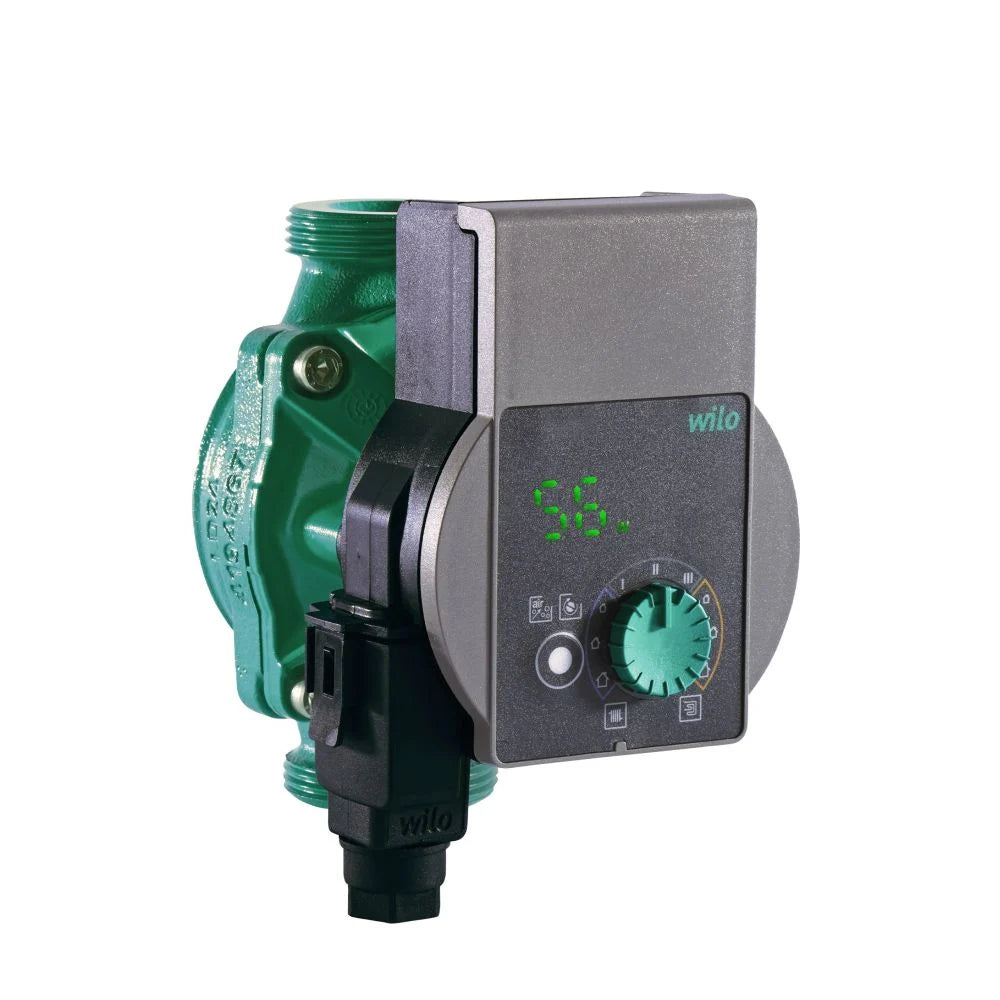

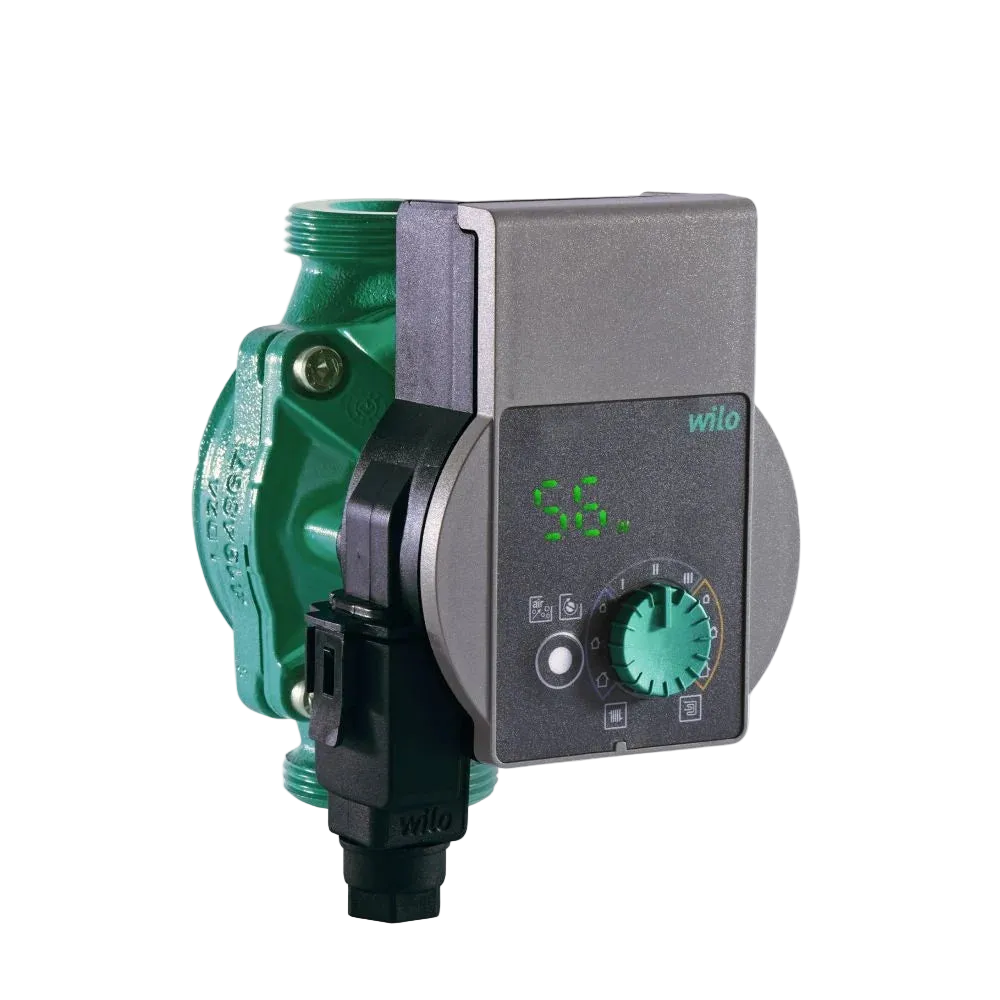

The Wilo Yonos PICO Glandless Circulating Pump represents the gold standard in high-efficiency, electronically controlled domestic circulation. Specially engineered for hot water heating, cooling, and air-conditioning systems, this variable-speed pump ensures your home operates at peak energy efficiency while significantly reducing utility bills.
Powered by advanced ECM (Electronically Commutated Motor) technology, the Yonos PICO draws as little as 4 watts of power. Whether you are running traditional radiators or modern underfloor heating, its intelligent electronic power control scales performance exactly to system demand, making it an ideal choice for single, two-family, or multi-family properties.
Key Features & Benefits
- Green Button Technology: Features a central, intuitive control button providing maximum operating convenience and effortless setup.
- Precision LED Segment Display: Real-time display showing the set delivery head, current power consumption (Watts), flow rate (m³/h), and diagnostic error codes.
- Flexible Control Modes: Three preselectable modes for optimal load adaptation: Variable Differential Pressure (?p-v), Constant Differential Pressure (?p-c), and 3 Constant Speed stages.
- Tool-Free Wilo-Connector: Enjoy rapid, hassle-free electrical connection with the convenient, plug-and-play wiring plug.
- Maximum Operational Safety: Built-in motor protection, an automatic deblocking function, and a manual venting routine ensure maintenance-free, long-term operation.
Technical Specifications
| Specification | Details |
|---|---|
| Motor Technology | Synchronous EC Motor (Blocking-current proof) |
| Mains Connection | 1~230 V ±10%, 50/60 Hz |
| Energy Efficiency Index (EEI) | ? 0.20 – 0.23 (Depending on specific model variant) |
| Fluid Temperature Range | -10 °C to +95 °C (Up to 110 °C on selected variants) |
| Max Operating Pressure | 10 bar (PN 10) |
| Protection Class / IP Rating | IPX4D |
| Pipe Connection Size | G 1½" Threaded Connection |
| Materials | Cast Iron (Housing), Stainless Steel (Shaft), Carbon (Bearing) |
What is Included in the Box?
- 1 x Wilo Yonos PICO Circulating Pump
- 1 x Tool-Free Wilo-Connector Plug
- 2 x High-Quality Sealing Gaskets
- 1 x Comprehensive Installation & Operating Instructions Manual
